Disclaimer: As I’m frequently updating the original guides and installers here on TeaNazaR.com, I will not be responsible for any brick issues if you were to follow my obsolete guides copied elsewhere. Thus subscribe to this post to get latest updates. Modifying any part of a device may void its warranty.
Just over last weekend, I remotely assisted one of my donor (who donated very, I mean really very generously, thanks again John Wilkins from U.K.) for his request to install OwnCloud on to both his WDMyCloud 3TB NAS and also WordPress on to one of the NAS. So I’m taking this opportunity to list down the necessary steps since it’s still fresh in mind.
Still similar to my OwnCloud installation guide here, there’s two method of running WordPress, first with a secondary domain (http://secondary-domain.primary-domain.com) or sub-path (http://primary-domain.com/sub-path).
Sub-path method is fairly easy to install so I’ll skip it and proceed to secondary domain (a.k.a. subdomain). You can also use this method if you own a full qualified domain (http://www.domain.com). For your info, WordPress also supports multisite which you can have multiple sites/domains running under one WordPress installation. But I will not cover the multisite topics here.
1)Prepare your WDMyCloud
I’ve separated the Web Server perquisites and installations in another guide. Please follow the guide WebHosting on WDMyCloud V4 Firmwares then comeback to this post to complete your WordPress installations on the WDMyCloud.
2)Prepare WordPress
WordPress doesn’t have any online installer so we’ll need to get it manually. This is version 4.3.1 at the time of published. Issue the commands below on your SSH shell session:
Shell
1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir-p/DataVolume/wordpress;
cd/DataVolume/wordpress;
wget https://wordpress.org/latest.tar.gz;
tar xf latest.tar.gz-C../;
rmlatest.tar.gz;
cpwp-config-sample.phpwp-config.php;
chown-Rwww-data:www-data.;
WordPress requires some security keys to be generated the first time your install. Go to this link on your browser https://api.wordpress.org/secret-key/1.1/salt/ and leave the it open for now as you’ll need the results on the next step.
Then edit the WordPress config file
nano wp-config.php . Edit as below: define(‘DB_NAME’, ‘wordpress‘); define(‘DB_USER’, ‘root‘); define(‘DB_PASSWORD’, ”); # (leave blank unless you’ve changed MySQL root password) define(‘DB_HOST’, ‘localhost:/var/run/mysqld/mysqld.sock‘); define(‘DB_CHARSET’, ‘utf8‘); define(‘DB_COLLATE’, ”); # (leave blank unless you know what you’re doing)
Right after the ‘DB_COLLATE‘ variable above, you’ll see similar variable entries as the one from your browser opened earlier. These are the security keys. Replace all the eight lines with the ones from your browser e.g.:
When done, “CTRL+x” to exit and “y” to save changes to the file.
Next we have to create a new database. Enter the MySQL console
mysql-uroot (add -p switch if you have changed MySQL root password). Then in the MySQL console, issue the following commands:
MySQL
1
2
mysql>CREATEDATABASEwordpress;
mysql>exit
3)Prepare Nginx WebServer
Edit a new config file: nano/etc/nginx/sites-available/wordpress
Paste and edit below as needed. Take note of the server_name parameter and replace it with your acquired earlier DDNS subdomain or your full qualified domain if you own it:
Shell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# Below should have already been set in /etc/nginx/sites-enabled/default.
# Uncomment if you have removed the default config.
#upstream php5-fpm.sock {
# server unix:/var/run/php5-fpm.sock;
# keepalive 1;
#}
server{
listen5080;
# Uncomment below if you have a valid SSL certificate (HTTPS).
When done, “CTRL+x” to exit and “y” to save changes to the file.
4)Enable the new configs
Activate the new wordpress config file:
Shell
1
2
3
cd/etc/nginx/sites-enabled;
ln-s../sites-available/wordpress wordpress;
Check if the new wordpress config is good: service nginx configtest
If failed, find out why in the log and fix it: more/var/log/nginx/error.log
Reload Nginx: service nginx reload
Or if you have changed the listening ports: service nginx restart
Note that you’ll also need to reload the PHP-FPM Daemon every time you make manual edits to the PHP scripts content or settings else you won’t see the changes. They are commonly files with “*.php” extension. This is perfectly normal for performance, due to precompiled scripts memory caching by PHP Opcache. The easiest way to clear the cache: service php5-fpm reload

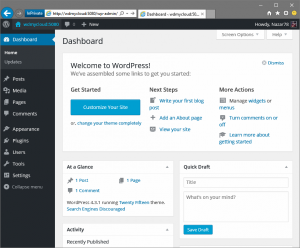

5)Setup WordPress Browse to your domain or the free DNS forwarder you got earlier to start the setup: http://my-freedns-subdomain-wordpress.mooo.com/
Or if you know what you’re doing and have set Nginx’s default server differently, just browse the WDMyCloud internal host/IP: http://wdmycloud:5080/
a. On the first page, choose your language, click “Continue“.
b. On the second page, it’s pretty self explanatory i.e. fill up the “Site Title“, “Username“, “Password “, check “Confirm Password“, provide a valid “E-mail“, choose your “Privacy” and finally click “Install WordPress“.
c. Wait patiently for your database tables to be created, after which you can now log in to your WordPress admin page.
Note that WordPress runs quite fast on a clean install of the WDMyCloud, ranging from 2ms to 2sec response time from a single request. But it will slow down tremendously if you kept installing bloated WordPress plugins. Or if there’s other apps currently using your CPU/IO resources such as Transmission if you have it installed and it’s active torrenting. Or if you have more than one sites using PHP5-FPM concurrently. Prefer to use HTML cache such as “W3 Total Cache” or “WP Super Cache” WP plugins rather than direct PHP request which indirectly advising to disable new user registrations because logged in users needs complete PHP interactions (you can’t feed them with caches). You can allow public comments or better by using “Facebook Comments” WP plugin using AJAX (I have not tried this though but it should help to decrease your load) or even better, code some of the simple snippets yourself according to your needs (I have done it on this site). If you’re uploading lots of images, resize them before uploading and avoid using PHP post processing the images. You can use this Adobe Flash based WP plugin “Resize images before upload“. Use commands like
top and
free-h to monitor your WDMyCloud usage. So keep all these in mind, be patient and keep it simple. For help and details or WordPress related errors, please refer to https://wordpress.org/.
